Mobile Printers (3 Inch)

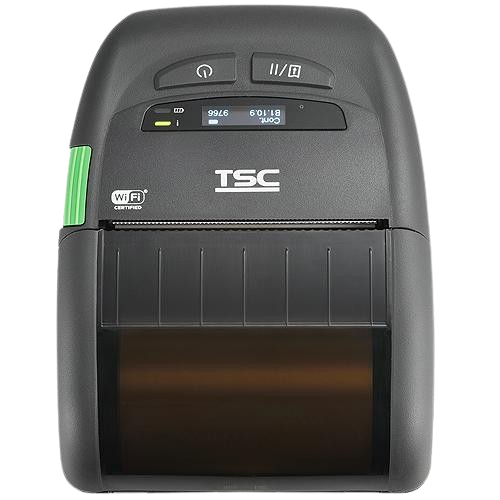

TSC - ALPHA 40L – 4 Inch Performance mobile printer

TSC Auto ID built its reputation on building rugged and reliable thermal label desktop printers. We have used this engineering and manufacturing expertise to design some of the industry's best reliable and rugged portable label printers.

The TSC Alpha-40L printers have compatibility with SOTI Connect remote printer management for greater visibility into real-time data on the health and performance of the devices.

The new mobile printer also feature a smart battery management system. The smart batteries within the mobile printer can report the state of battery capacity, charge and history of charge cycles.

With the Apple-certified MFi Bluetooth® 5.0 connection and 802.11 a/b/g/n/ac Wi-Fi fast roaming features, the Alpha-40L not only provides reliable and seamless communication with users’ devices, it also securely prints labels wherever they are needed.

The Alpha-40L near Field Communication (NFC) makes it simple to connect to the printer directly from a compatible device. NFC capability automatically establishes a direct connection between your NFC enabled smartphone or tablet and an Alpha-40L printer, so you can print or scan using any number of applications without having to connect to a network or enter any login credentials.

Industries and Applications

Healthcare
Linerless
Product & Item Label
Shipping & Logistics
Warehouse & Fulfilment

Applications

  • Raw materials, finished goods
  • Asset management
  • Shipping and receiving
  • Direct store delivery
  • Emergency medical service ambulance
  • Shelf labelling
  • Supermarket relabelling
  • Model Alpha 40L
    Resolution 8 dots/mm (203 dpi)
    Printing Method Direct Thermal Only
    Display Color LCD with button
    Hardwire Connectivity USB
    Wireless Connectivity Bluetooth MFi Wi-Fi with Bluetooth
    Enterprise Printer Management TSC Console
    SOTI Connect (license required)
    Type Mobile
    Max. Print Speed Up to 5 ips (127 mm/s)
    (2,3 ips for peeler mode)
    Max. Print Width 4.09" (104 mm)
    Max. Print Length 2,794 mm (110”)
    RAM 128 MB SDRAM
    Flash 128 MB
    Expandable Flash MicroSD card reader up to 32GB
    Internal Label Capacity 2.64" (67 mm) OD
    Max. Media Width 2" - 4.4" (50.8 - 112 mm) with liner
    Ribbon & Media Type Die cut, black mark, Receipt, Fan fold, Linerless, continuous (Outside Wound)
    Min. Label Length 0.5" (12.5 mm)
    1.0" if using peeler
    Construction Plastic with rubber over-mold construction
    Programming Language TSPL-EZC or ESC-POS
