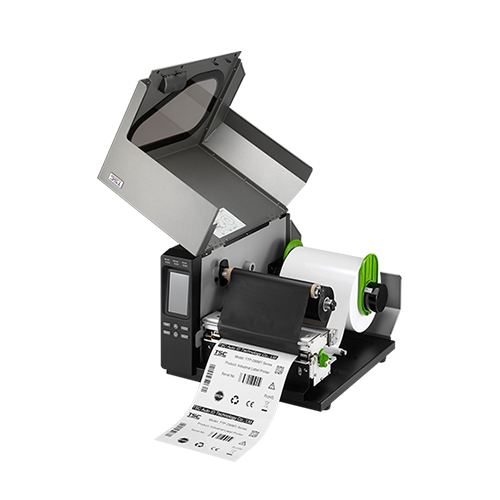

TSC-TTP-series 286MT (8 Inch Industrial Barcode and Label printer)
TSC - TTP 286MT- 8 Inch Performance Industrial Printer
This 8-inch wide industrial printer series features two models to meet your wide format labelling needs: TTP-286MT, 203 dpi resolution at print speeds up to 6inches per second. TTP-384MT, 300 dpi resolution at print speeds up to 4 inches per second. With its wide printing capabilities, the TTP-286MT is designed to print wide lateral bar codes without the need for image rotation.
The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labelling, brand marketing, inventory control, drum labelling, warning signs and a host of other signage solutions.
Industries and Applications
Custom signage
Manufacturing
Product & Item Label
Shipping
Warehouse
GHS Chemical Label
Applications
Related Products
.png)
TTP 384MT
| Model | TTP 286MT | Resolution | 203 dpi（8 dots/mm） |
|---|---|---|
| Print Method | Direct Thermal / Thermal Transfer | |
| Display | Color LCD Touch screen with buttons | Hardwire Connectivity | Ethernet GPIO Parallel Port Serial RS-232 USB USB Host |
Wireless Connectivity | Bluetooth | Enterprise Printer Management | TSC Console | Type | Industrial | Max. Print Speed | Up to 6 ips (152 mm/s) | Max. Print Width | 8.5" (216 mm) | Max. Print Length | 450" (11,430 mm) | RAM | 256 MB SDRAM | Flash | 512 MB | Expandable Flash | microSD card reader; up to 32 GB | Optional Cutter | Guillotine cutter (full cut), Heavy duty cutter (full cut) | Internal Label Capacity | 8.2" (208.3 mm) OD | Max. Media Width | 9.5" (241.3 mm) | Ribbon & Media Type | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) | Max. Ribbon Length | 600 Meters | Max. Ribbon Width | 4.3“ - 10“ (110 mm - 254 mm) | Media Core Diameter | 3" (76.2 mm) | Min. Label Length | 1" (25.4 mm) | Construction | Die-cast chassis/sheet metal structure with clear media view window | Programming Languages | TSPL-EZD |
