MX Series 4-Inch Performance Industrial Printers

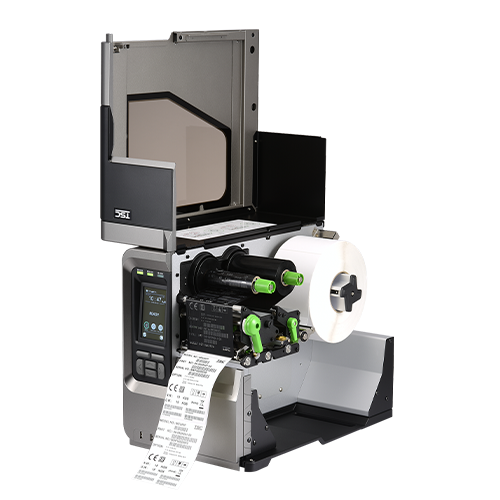

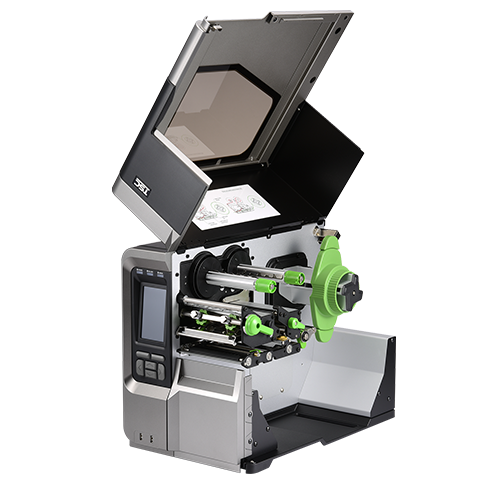

TSC - MX 241P/341P/641P 4 Inch Performance Industrial Printer
Featuring our fastest print speeds ever, these printers are made to boost productivity and are ideal for applications that include manufacturing, logistics, shipping, and product identification. The MX Series industrial thermal printers are ruggedly built for high volume, high quality, label printing. The industrial-grade MX Series was designed to deliver 24x7 high-volume performance. It features a diecast aluminium print mechanism housed in a very strong yet lightweight cabinet. This design results in a more durable printer that is suited for your most heavy-duty demand cycles.
Industries and Applications
Healthcare
Manufacturing
Product & Item Label
Shipping
Warehouse
Industries and Applications
Warehouse & Logistics
Packing
Order Fulfilment
Shipping/Receiving
Inventory Management
Manufacturing
Work In Process
Product Marking
Compliance
Healthcare
Blood Test Tube Label
Patient Wristband Label
Related Products
MH-286T & MH-361T
MH-241 & MH-261
ML-240
| Modelling | MX241P | MX341P | MX641P |
|---|---|---|---|
| Resolution | 203 dpi (8 dots/mm) | 300 dpi (12 dots/mm) | 600 dpi (24 dots/mm) |
| Print Method | Direct Thermal / Thermal Transfer | Direct Thermal / Thermal Transfer | Direct Thermal / Thermal Transfer |
| Display | Color LCD touchscreen with button | Color LCD touchscreen with button | Color LCD touchscreen with button |
| Hardware Connectivity | Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
Ethernet GPIO Parallel port Serial RS-232 USB USB Host |
Wireless Connectivity | Bluetooth MFi Wi-Fi with Bluetooth | Bluetooth MFi Wi-Fi with Bluetooth | Bluetooth MFi Wi-Fi with Bluetooth | Enterprise Printer Management | TSC Console
SOTI Connect (license required) |
TSC Console
SOTI Connect (license required) |
TSC Console
SOTI Connect (license required) |
Type | Industrial | Industrial | Industrial | Max. Print Speed | Up to 18 ips (457 mm/s) @ 203 dpi | 14 ips (356 mm/s) | 6 ips (152 mm/s) | Max. Print Width | 4.09" (104 mm) | 4.09" (104 mm) | 4.09" (104 mm) | Max. Print Length | 1,000" (25,400 mm) | 450" (11,430 mm) | 100" (2,540 mm) | RAM | 512 MB SDRAM | 512 MB SDRAM | 512 MB SDRAM | Flash | 512 MB | 512 MB | 512 MB | Expandable Flash | microSD card reader; up to 32 GB | microSD card reader; up to 32 GB | microSD card reader; up to 32 GB | Optional Cutter | Regular guillotine cutter, Heavy duty guillotine cutter | Regular guillotine cutter, Heavy duty guillotine cutter | Regular guillotine cutter, Heavy duty guillotine cutter | Internal Label Capacity | 8" (203.2 mm) OD | 8" (203.2 mm) OD | 8" (203.2 mm) OD | Max. Media Width | 0.78" - 4.49" (20 - 114 mm) | 0.78" - 4.49" (20 - 114 mm) | 0.78" - 4.49" (20 - 114 mm) | Ribbon & Media Type | Continuous, Die-Cut, Black Mark (bottom side or top side black mark), Fan-Fold, Notch, Perforated, Tag, Care Label (outside wound) | Continuous, Die-Cut, Black Mark (bottom side or top side black mark), Fan-Fold, Notch, Perforated, Tag, Care Label (outside wound) | Continuous, Die-Cut, Black Mark (bottom side or top side black mark), Fan-Fold, Notch, Perforated, Tag, Care Label (outside wound) | Max. Ribbon Length | 600 Meters | 600 Meters | 600 Meters | Max. Ribbon Width | 1" - 4.5" (25.4 - 114.3 mm) | 1" - 4.5" (25.4 - 114.3 mm) | 1" - 4.5" (25.4 - 114.3 mm) | Media Core Diameter | 3" (76.2 mm) | 3" (76.2 mm) | 3" (76.2 mm) | Min. Label Length | 0.1" (3 mm) | 0.1" (3 mm) | 0.1" (3 mm) | Construction | Die-cast print mechanism with large clear media view window | Die-cast print mechanism with large clear media view window | Die-cast print mechanism with large clear media view window | Programming Languages | TSPL-EZD | TSPL-EZD | TSPL-EZD |
